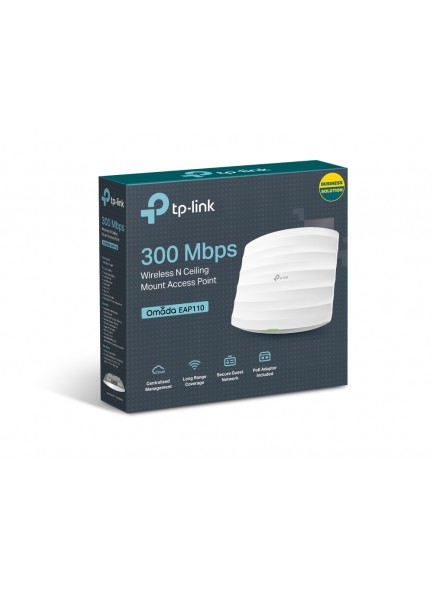

TPLINK EAP110 300Mbps Wireless N Ceiling Mount Access Point


TPLINK EAP110 300Mbps Wireless N Ceiling Mount Access Point

0 reviews Write a review
BrandsTPLINK
ModelEAP110
Availability:In Stock
Product Enquiry
HARDWARE FEATURES
InterfaceFast Ethernet (RJ-45) Port *1（Support Passive PoE）
ButtonReset
Power Supply24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption2.8W
Dimensions ( W x D x H )7.5×6.7×1.2 in (189.5×170.5×29.7mm)
Dimensions7.5×6.8×1.2 in.
(189.4×172.3×29.5mm)
Antenna TypeInternal 2* 4dBi Omni
MountingCeiling /Wall Mounting (Kits included)
WIRELESS FEATURES
Coverage60㎡(650ft²)§
Wireless Client Capacity100+**
Concurrent Clients100+**
Wireless StandardsIEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency2.4-2.4835GHz
Signal Rate11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity300M: -71dBm@10% PER
150M: -75dBm@10% PER
54M: -78dBm@10% PER
11M: -93dBm@8% PER
6M: -92dBm@10% PER
1M: -96dBm@8% PER
Wireless FunctionsMultiple SSIDs （Up to 8 SSIDs）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control （Adjust Transmit Power on dBm）
QoS(WMM)
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless SecurityCaptive Portal Authentication
Access Control
Wireless MAC Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
Transmission PowerCE:
≤19dBm(EIRP)
FCC:
≤21dBm
MANAGEMENT
Omada AppYes
Centralized Management• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Omada Controller SoftwareYes
Cloud AccessYes (Through OC300, OC200, or Omada Software Controller)
Email AlertsYes
LED ON/OFF ControlYes
Management MAC Access ControlYes
SNMPv1,v2c
System Logging Local/Remote SyslogLocal/Remote Syslog
TelnetYes
SSHYes
Web-based ManagementHTTP/HTTPS
L3 ManagementYes
Multi-site ManagementYes
Management VLANYes
OTHERS
CertificationCE, FCC, RoHS
Package Contents300Mbps Wireless N Ceiling Mount Access Point EAP110
Passive PoE Adapter,
Power Cord,
Mounting Kits,
Installation Guide
System RequirementsMicrosoft Windows 10/8/7/Vista/XP
EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
