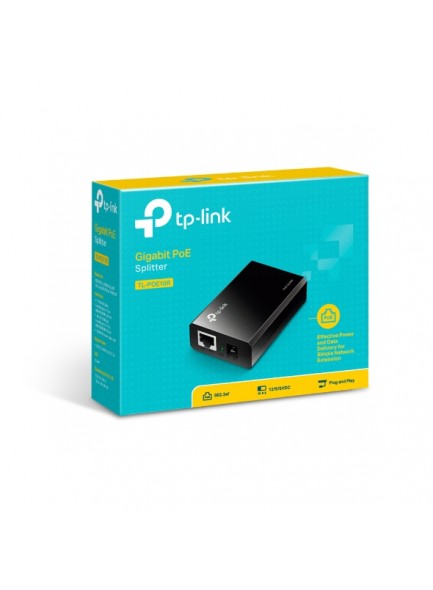

TPLINK TL-POE10R PoE Splitter
| Brands | TPLINK |
| Model | TL-POE10R |
| Availability: | In Stock |
| HARDWARE FEATURES |
|---|
| Interface | 2 10/100/1000Mbps RJ45 Port
AUTO Negotiation/AUTO MDI/MDIX
1 POWER OUTPUT PORT (5.5 mm round barrel) |
|---|
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) |
|---|
| Power Supply | 12VDC 1A, 9VDC 1A, 5VDC 2A selectable |
|---|
| Basic Function | Compatible With IEEE 802.3af Compliant PSEs
Delivers Power Up To 100 Meters
Optional 12VDC, 9VDC or 5VDC Power Output |
|---|
| LED Indicator | PWR |
|---|
| Dimensions ( W x D x H ) | 3.2 × 2.1 × 0.9 in.
(81 × 54 × 24 mm) |
|---|
| SOFTWARE FEATURES |
|---|
| Basic Function | Compatible with IEEE 802.3af compliant power sources (PSE)
Delivers power up to 100 meters
Selectable 12VDC, 9VDC or 5VDC power output
|
|---|
| OTHERS |
|---|
| Certification | FCC, RoHS |
|---|
| Package Contents | PoE Splitter TL-POE10R
Power Cord
RJ45 Cable
Installation Guide |
|---|
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
|---|
Tags: TPLINK TL-POE10R PoE Splitter, poe splitter,
